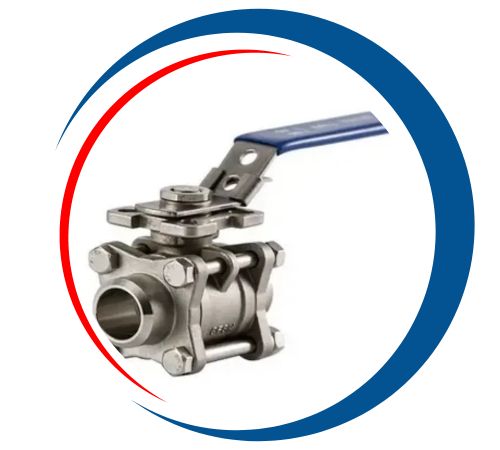

Curtis Tube Fittings, based in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality fluid control solutions, with a special focus on Butt Weld End Ball Valves. These valves are designed for exceptional performance, ensuring leak-free and precise flow control even in the toughest industrial settings. By blending advanced manufacturing techniques with precision engineering and strict quality standards, Curtis Tube Fittings delivers valves that are both durable and reliable. Their Butt Weld End Ball Valves find applications across various industries, including oil and gas, petrochemicals, chemical processing, and power generation, offering efficient, safe, and long-lasting solutions for managing high-pressure and high-temperature fluids.
Typically made from high-grade stainless steel, carbon steel, or alloy materials, Butt Weld End Ball Valves are built to endure extreme pressure and temperature conditions. They feature a full-bore ball and seat, meticulously machined to guarantee smooth operation, tight sealing, and minimal leakage. With robust welded ends, these valves create strong, permanent connections in pipelines, boosting durability and mechanical strength. They also excel in corrosion resistance, thermal stability, and wear resistance, making them ideal for handling aggressive chemicals, steam, and high-pressure fluids in demanding industrial environments.
| Material | CF8M Stainless Steel |
|---|---|
| Seat | 15% glass reinforced RTFE |
| Component Material | Stem packing: 15% glass reinforced RTFE |
| Size | ½” To 3″ |
| Port | Full |
| Length | 7.3″ |
| Pressure Rating | 800 PSI WOG at 65°F (18°C) |
| Maximum Temperature | 400°F (204°C) |
| Flow | 1-Way |
Venton Tube Fittings is the premier supplier, manufacturer and exporter of (Butt Weld End Ball Valves) in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.
| No. | Name | Material | QYT |
| 1 | Body | CF8M | 1 |
| 2 | Cap | CF8M | 2 |
| 3 | Ball | CF8M | 1 |
| 4 | Stem | 316 | 1 |
| 5 | Seat | PTFE+3%.GF | 2 |
| 6 | Thrust.washer | PTFE+15%.Graphite | 1 |
| 7 | Gasket | PTFE+15%.Graphite | 2 |
| 8 | Bolt | 304 | 4 |
| 9 | Nut | 304 | 4 |
| 10 | Spring.washer | 304 | 4 |
| 11 | O.ring | Viton | 1 |
| 12 | Stem.packing | PTFE | 1 |
| 13 | Gland | 304 | 1 |
| 14 | Butterfly.washer | 301 | 2 |
| 15 | Lock.wahser | 304 | 1 |
| 16 | Square.washer | 304 | 1 |
| 17 | Handle | 304 | 1 |
| 18 | Flat.ring | 304 | 1 |
| 19 | Nut | 304 | 2 |
| 20 | Handle.sleeve | Rubber | 1 |
| 21 | Bolt | 304 | 1 |
| 22 | Nut | 304 | 1 |
| 23 | Spring.washer | 304 | 1 |
| 24 | Locker | 304 | 1 |
Contact us to get a quick quote for your requirement.
Venton Tube Fittings is a trusted and exporter of top-quality(Butt Weld End Ball Valves) Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.
Please feel free to contact us if you need any further information or for enquiry.
