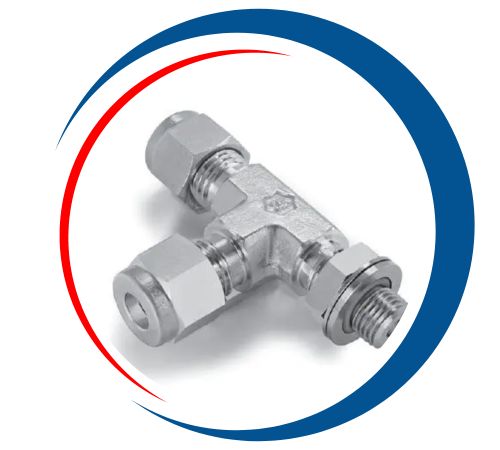

Curtis Tube Fittings is a reputable manufacturer and supplier located in Manila, Philippines, specializing in top-notch Titanium Tube Fittings. These fittings are celebrated for their impressive strength-to-weight ratio and outstanding resistance to corrosion, making them a go-to choice for various industries. Designed to meet the highest standards, they perform exceptionally well in demanding environments, even under high pressure and temperature. Curtis Tube Fittings prides itself on precision manufacturing, consistent quality, and timely delivery, serving sectors like chemical processing, oil and gas, power generation, and aerospace. With a strong emphasis on durability and performance, their Titanium Tube Fittings promise a long-lasting and efficient service life.
These fittings are primarily made from titanium, with small amounts of aluminum, vanadium, and molybdenum added to boost their strength and corrosion resistance. They showcase remarkable tensile strength, typically falling between 240–550 MPa, and their low density ensures they remain lightweight. Titanium fittings are highly ductile, have a melting point around 1660 °C, and offer exceptional resistance to seawater, chemicals, and extreme temperatures. Their superior fatigue strength, excellent formability, and non-magnetic properties make them perfect for critical applications where durability and reliability are a must, even in harsh operating conditions.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Equivalent To | SWAGELOK, PARKER, DK-LOK, HOKE |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application | |
| Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Titanium Tube Fittings | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Tube Fittings | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
At Curtis Tube Fittings, we are the largest supplier, manufacturer, and exporter of Titanium Tube Fittings in Manila, Philippines. Our advanced manufacturing facilities, strategically located in the Philippines, allow us to provide high-quality solutions tailored to your specific requirements. With a substantial inventory of over 16,000 tons of top-grade stainless steel materials, we are well-equipped to meet your needs promptly. Our commitment to excellence and efficiency ensures that we consistently maintain available stock to support your demands.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Tube Fittings | 3.7035 | R50400 |
Contact us to get a quick quote for your requirement.
Titanium Tube Fittings find their place in industries that require high-strength, lightweight components with exceptional corrosion resistance. They’re commonly used in chemical and petrochemical processing plants, offshore and marine engineering, power generation, and desalination facilities. In the aerospace and defense sectors, these fittings are crucial for supporting critical fluid transfer systems due to their strength and thermal stability. Additionally, they are utilized in medical equipment, pharmaceutical industries, and high-performance automotive systems. Their ability to endure high pressures and tough environments makes them an outstanding choice for a variety of applications.
Please feel free to contact us if you need any further information or for enquiry.
