Titanium Gr 5 Needle Valve

Home >Titanium Gr 5 Needle Valve

Curtis Tube Fittings, Manila, Philippines, is a leading industrial fittings and valves supplier of superior-quality industrial fittings and valves with specialized precision-engineered solutions for the control of fluid and gas across diverse industries. One of their high-end products is the Titanium Gr 5 Needle Valve made of Titanium Grade 5 (Ti-6Al-4V) famous for its remarkable strength, resistance to corrosion, and lightweight feature. This valve is needle-shaped and is used to control the flow precisely, hence suitable for use in aerospace, marine, and chemical applications. Curtis Tube Fittings believes in quality and innovation to produce reliable, long-lasting products in harsh environments.

Titanium Gr 5 Gauge Bleed Needle Valves Supplier in Manila, UNS R56400 Titanium Gr 5 Industrial Needle Valve Price List in Cebu City, Ti Alloy R56400 Needle Manufacturer in Davao City, DIN 3.7165 Needle Valves in Baguio, Grade 5 Titanium Gauge Valves Exporter in Cebu City, Titanium 6Al-4V Needle Valve Manufacturer in Puerto Princesa, Titanium Alloy Grade 5 Needle Valve In Manila, Philippines.

Titanium Gr 5 Needle Valve Specifications
Titanium Gr 5 Needle Valve Chemical Composition
Titanium Gr 5 Needle Valve Mechanical Properties
Top Titanium Gr 5 Needle Valve Manufacturing Company in Manila
Types of Titanium Gr 5 Needle Valve
Titanium Gr 5 Needle Valve Equivalent
Largest Titanium Gr 5 Needle Valve Supplier in Manila, Philippines
Titanium Gr 5 Needle Valve Uses
Visit Our Other Products

Titanium Gr 5 Needle Valve is constructed using Titanium Grade 5 (Ti-6Al-4V) alloy that is made of around 90% titanium, 6% aluminum, and 4% vanadium. This provides exceptional strength and resistance against corrosion. The valve has outstanding mechanical properties like tensile strength of 895 MPa, yield strength of 828 MPa, and elongation of 10%. It can be used for applications involving high pressures. Its physical attributes are low density (4.43 g/cm³), high melting point (1,660°C), and outstanding fatigue and oxidation resistance, with the assurance of long life in severe conditions.

Titanium Gr 5 Needle Valve Specifications

VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, FLANGE END
FLOW PATTERN	STRAIGHT, ANGLE, CROSS PATTERNS
FUNCTION	2 WAY, 3 WAY
BODY SHAPE	SQUARE, ROUND, HEXAGON
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI, 20000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE,KNOB HANDLE, WHEEL HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
MATERIAL	TITANIUM GRADE 5

Titanium Gr 5 Needle Valve Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade5	90 min	–	0.25 max	–	–	0.2 max	6 min	4 min

Titanium Gr 5 Needle Valve Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 5	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Top Titanium Gr 5 Needle Valve Manufacturing Company in Manila

At Curtis Tube Fittings, we are the largest supplier, manufacturer, and exporter of Titanium Gr 5 Needle Valve in Manila, Philippines. Our advanced manufacturing facilities, strategically positioned in the Philippines, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

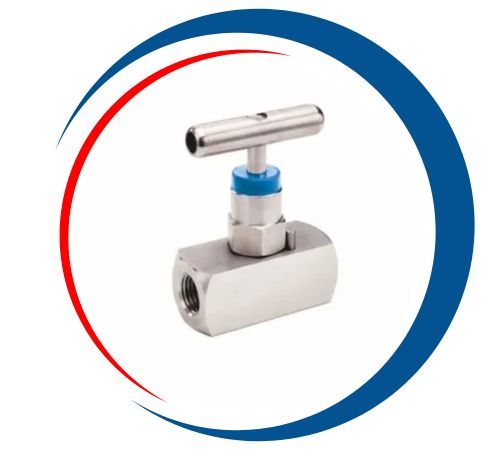

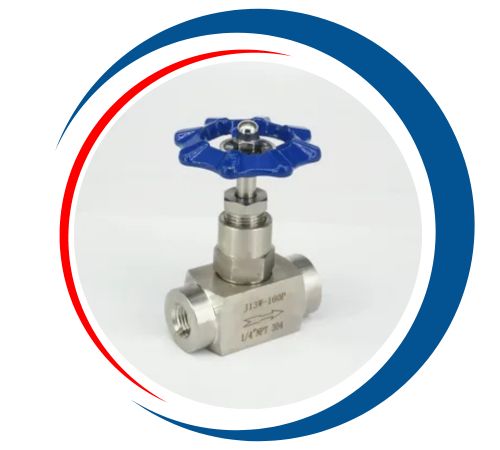

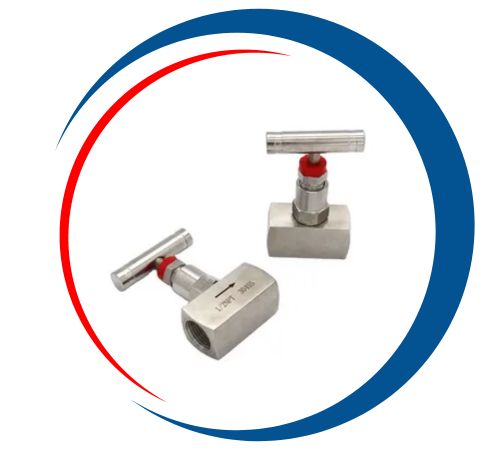

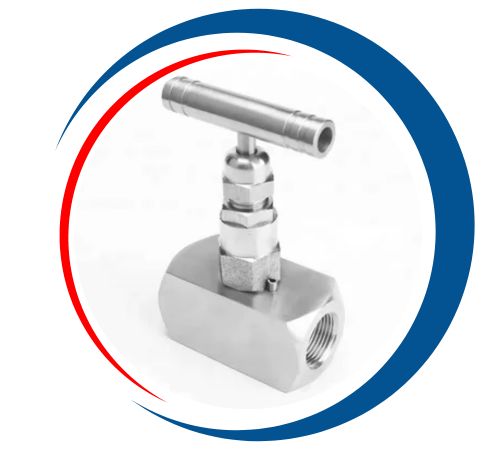

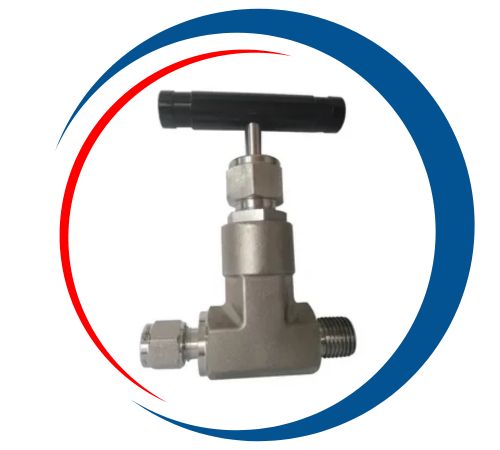

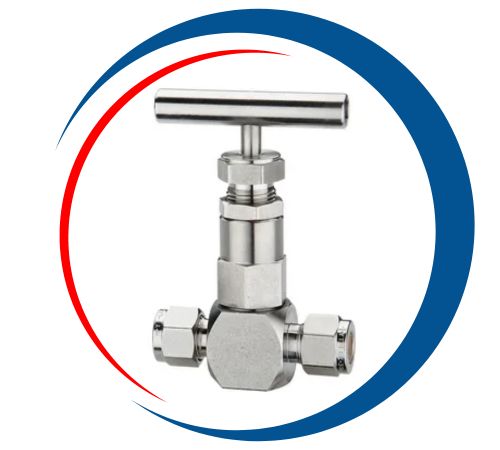

Types of Titanium Gr 5 Needle Valve

Titanium Gr 5 Needle Valve Equivalent

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr. 5	3.7165	N56400

Titanium Alloy Gr 5 Hydraulic Needle Valve Price in Manila, Ti Grade 5 Parker Needle Valve Supplier in Cebu City, Ti6Al4V Screwed End Needle Valve Manufacturer in Davao City, Ti Alloy Gr. 5 Multiport Gauge Valves Price in Baguio, Titanium Gr 5 Gauge Vent Valves Supplier And Manufacturer in Puerto Princesa, Titanium Gr.5 Gauge Valve In Manila, Philippines.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Titanium Gr 5 Needle Valve Supplier in Manila, Philippines

Curtis Tube Fittings is a leading supplier and stockist of premium Titanium Gr 5 Needle Valve in Manila, Philippines. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Titanium Gr 5 Needle Valve Uses

The Titanium Gr 5 Needle Valve enjoys broad application where precise flow control and resistance to harsh conditions are necessary. Its high corrosion resistance makes it suitable for marine applications and offshore use, and its strength-to-weight ratio makes it useful in aerospace for hydraulic and fuel systems. It is applied in chemical processing for the handling of aggressive fluids and gases as well. Moreover, the valve is apt for medical devices, power generation, and the oil and gas industry, in which high-pressure performance, precision, and durability are of great concern.
