Curtis Tube Fittings, located in Manila, Philippines, has earned a solid reputation as a reliable manufacturer and supplier of **Hastelloy Tube Fittings**. They specialize in delivering top-notch solutions tailored for demanding industrial applications. These fittings are meticulously designed to guarantee **secure, leak-free connections** in tube and piping systems, ensuring dependable performance even in **high-pressure, high-temperature, and corrosive environments**. By harnessing the remarkable properties of Hastelloy, Curtis Tube Fittings creates fittings that boast **exceptional corrosion resistance, mechanical strength, and durability**, making them perfect for critical operations. Catering to the chemical, petrochemical, and power industries, Curtis Tube Fittings is committed to providing **safe, efficient, and long-lasting tube connections**.
Hastelloy Tube Fittings are crafted from **Hastelloy alloys**, a group of nickel-based alloys celebrated for their **superior resistance to oxidizing and reducing agents, acids, and harsh chemical environments**. These alloys are characterized by **high tensile and yield strength, excellent toughness, and thermal stability**, ensuring that the fittings maintain **structural integrity and leak-free performance** even in the most extreme service conditions. The blend of chemical resistance and mechanical strength makes Hastelloy fittings the go-to choice for **high-demand industrial applications**.
| Hastelloy Tube Fittings specification (ASTM / ASME) | ASTM B366, ASME SB366 |
|---|---|
| Working Pressure | Up to 6,000 psi (based on severity of application) |
| Two-Ferrule Tube Fittings | Pressure Ratings : Up to 11 000 psig (760 bar) |
| Medium-Pressure, Gaugeable | Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C) |
| High-Pressure Hastelloy C276 Tube Fittings | Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Inconel 625 Tube fittings |
| Hastelloy Tube Fittings Special sizes | 22mm Hastelloy C276 tube fittings 25mm Hastelloy C22 tube fittings 32mm Hastelloy B2 tube fittings 50mm Hastelloy Ferrule tube fittings |
| Hastelloy Compression Fittings End Connections | Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
| Hastelloy C276 Tube Fittings Sizes | 1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm |
| Brand Name | Hastelloy Tube fittings |

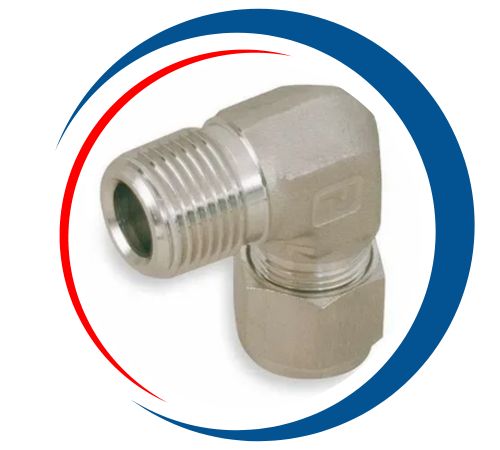

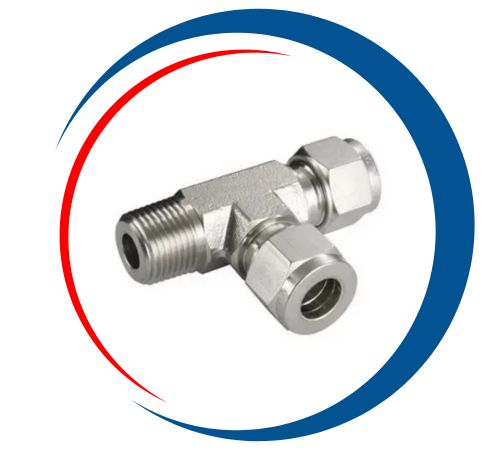

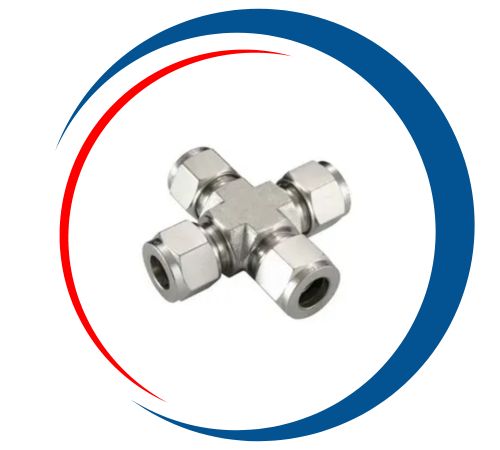

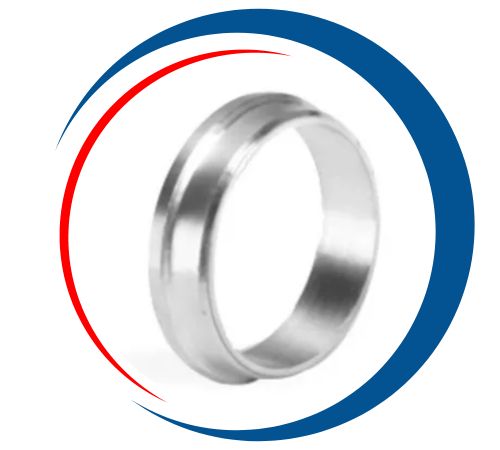

| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Types | Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs |
| Hastelloy Hydraulic Fittings Specification | Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564 |
| Tube Size | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Threads | NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc. |
| PTFE Standards | ASTM D1710, ASTM D3294 |
| Hastelloy Ferrule Tube Fittings Applicable Temperature | 150-400°C |
| Hastelloy C276 Tube Fittings Packing Details |
|
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
Venton Tube Fittings is the premier supplier, manufacturer and exporter of (Hastelloy Tube Fittings) in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.
| OD Size: 6mm to 38mm | Inch: 1/4″ to 1 1/2″ |
Contact us to get a quick quote for your requirement.
You’ll find Hastelloy Tube Fittings widely utilized in **chemical processing, petrochemical, oil & gas, power generation, and marine industries**, especially in **corrosive and high-temperature environments**. They play a crucial role in **tubing systems, process lines, and instrumentation setups**, delivering **precise, safe, and reliable connections**. Their outstanding resistance to corrosion, scaling, and chemical attack guarantees **long-term reliability and minimal maintenance**, making Hastelloy Tube Fittings the preferred option for engineers in search of **robust, high-performance solutions in extreme industrial conditions**.
Hastelloy Tube Fittings find extensive applications in chemical processing, aerospace, and pharmaceutical industries. They are best suited for use in applications where corrosion resistance is paramount, especially in the handling of aggressive fluids or gases, e.g., in reactors, heat exchangers, and pipelines. They provide a safe, leak-free connection even under harsh conditions. Their long life makes them ideal for systems that are under high pressure and temperature, minimizing maintenance and prolonging the life of complex fluid handling systems.
Please feel free to contact us if you need any further information or for enquiry.
