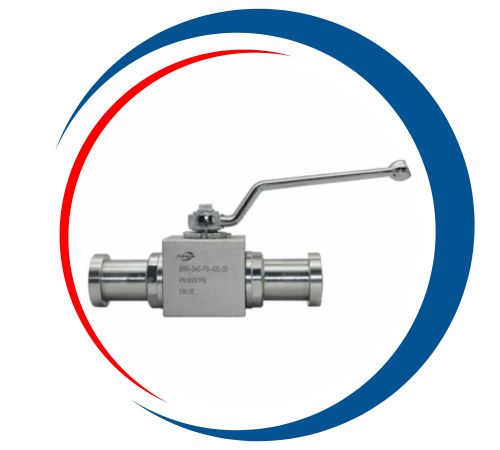

Hydraulic Sae Flange Ball Valve

Home > Hydraulic Sae Flange Ball Valve

Curtis Tube Fittings is a renowned Philippines manufacturer and supplier of hydraulic components of superior quality in Manila, Philippines. We have expertise in Hydraulic SAE Flange Ball Valves, which are optimized for effective flow control in high-pressure hydraulic systems. The valves are leak-proof in operation, rugged, and possess high pressure and temperature-resistant qualities, rendering them ideal for tough industrial use. Fabricated with precision engineering and durable material, our hydraulic SAE flange ball valves find extensive application in oil & gas, heavy equipment, construction, and manufacturing sectors for consistent fluid control.

Hydraulic Sae Flange Ball Valve Supplier in Manila, SAE Flanged End Ball Valve Price List in Cebu City, SS316 Ball Valves Manufacturer in Davao City, Hexagon shape Hydraulic Sae Flange Ball Valve in Baguio, Hydraulic Sae Threaded Ball Valve Exporter in Cebu City, Hydraulic Sae Compression Ball Valve Manufacturer in Puerto Princesa, Hydraulic Sae Flange Ball Valve In Manila, Philippines.

KhpHydraulic Sae Flange Ball Valve Specification
Top Hydraulic Sae Flange Ball Valve Manufacturing Company in Manila
types of ball valves
Types of Hydraulic Sae Flange Ball Valve
Ball valve with SAE flange flow rate
Hydraulic Sae Flange Ball Valve Supplier in Manila, Philippines
Hydraulic Sae Flange Ball Valve Uses
Visit Our Other Products

Hydraulic SAE Flange Ball Valves are generally constructed of stainless steel, carbon steel, or alloy steel and are known for good strength, corrosion resistance, and wear resistance. These valves have high tensile strength (80-120 ksi), yield strength (40-80 ksi), and excellent impact resistance, so they are applicable in high-pressure applications to 6000 PSI. They have physical properties of temperature resistance between -50°C and 500°C, smooth control of flow, and low torque operation. The ball and seat are precision machined to provide a tight seal, prevent leakage, and ensure long term performance.

KhpHydraulic Sae Flange Ball Valve Specification

Size Range: 1/8″ TO 2″ / 6 MM TO 50 MM
Design: Quarter Turn Type
Material: Steel / SS316
Working Pressure: 3000 PSI / 6000 PSI
Connections: SAE Flanged End, Code 61 / Code 62
Brand: TU-LOK
Applicable Medium: General Hydraulic Oil (Gas Application on request)
Temperature Range for Steel Ball Valves: -20°C to +100°C
Temperature Range for SS316 Ball Valves: -30°C to +100°C
Ball Seats: POM (POM standard option, other materials on request)
Stem and Adaptor Sealing Materials: NBR (NBR standard option, other materials on request)

Top Hydraulic Sae Flange Ball Valve Manufacturing Company in Manila

Venton Tube Fittings is the premier supplier, manufacturer and exporter of Hydraulic Sae Flange Ball Valve in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.

types of ball valves

Valve Type	BKH / BKHP	MKH / MKHP	KH
Diameter Size	1/8″ to 1″	1 1/4” to 2	1/2” to 3”
Working Pressure	Up to 800 Bar	Up to 420 Bar	Up to 420 Bar
Body Design	Square shape	Round / Hexagon shape	Round shape
Connection Type	Threaded Compression Flange end	Threaded Compression Flange end	Flange end

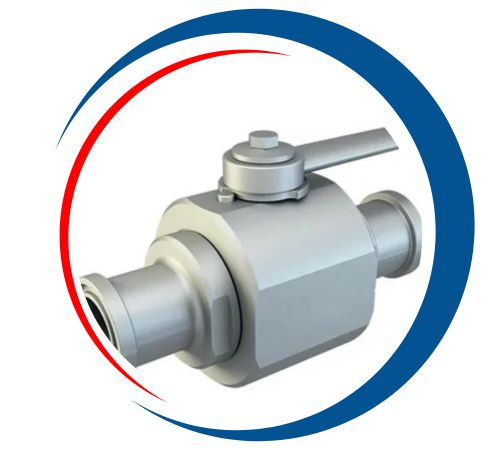

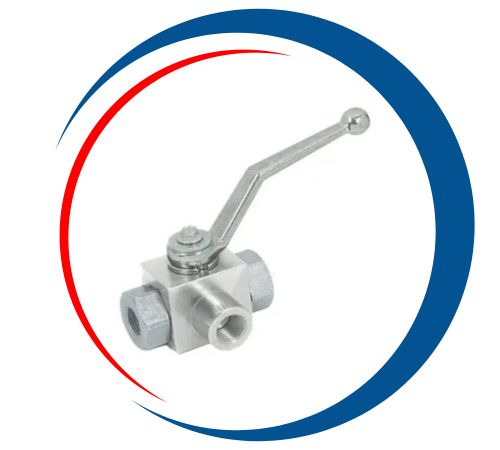

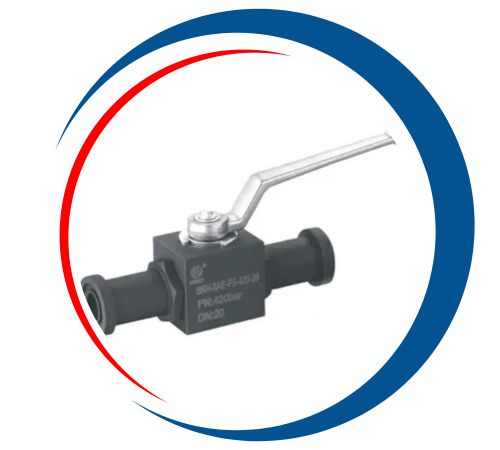

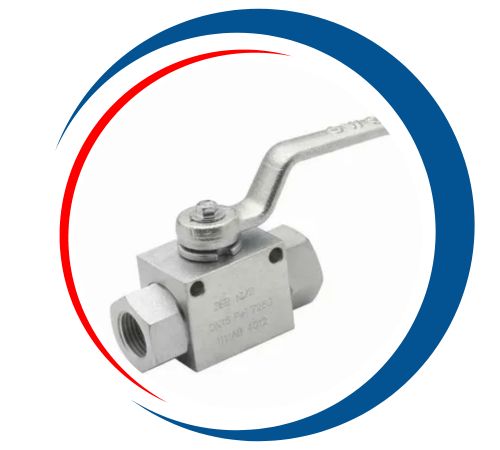

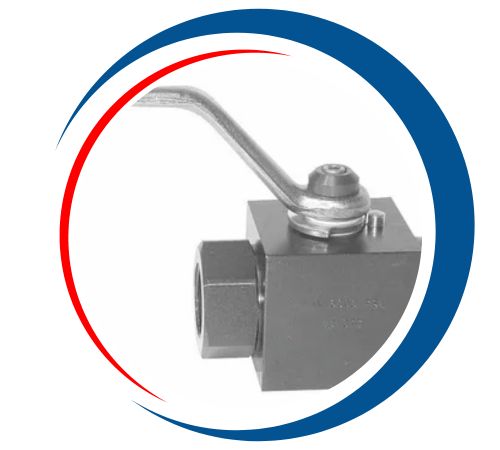

Types of Hydraulic Sae Flange Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Hydraulic Sae Ball Valve Supplier In Davao City, SAE Flanged End Ball Valve Exporter In Manila, SS316 Ball Valves Dealer In Cebu City, Hydraulic Sae Hexagon shape Ball Valve Supplier in Manila, Hydraulic Sae Threaded Ball Valve Price List in Cebu City, Hydraulic Sae Compression Ball Valve Manufacturer in Davao City, Hydraulic Sae Flange end Ball Valve in Baguio, Hydraulic Sae Ball Valve Exporter in Cebu City, Hydraulic SAE Flanged End Ball Valve Manufacturer in Puerto Princesa, Hydraulic Sae Flange Ball Valve In Manila, Philippines.

Ball valve with SAE flange flow rate

Nominal Diameter (mm)	Nominal Diameter (inch)	Kv (m3/h)	Cv (gal/min)
15	1/2″	19,4	22,6
20	3/4″	45,6	53,0
25	1″	71,5	83,1
32	1 1/4″	105	122,1
40	1 1/2″	170	197,7
50	2″	275	319,8
65	2 1/2″	507	589,5
80	3″	905	1052,3
100	4″	1414	1644,2
125	5″	2362	2746,5
150	6″	3694	4295,3

Hydraulic Sae Flange Ball Valve Supplier in Manila, Philippines

Venton Tube Fittings is a trusted and exporter of top-quality Hydraulic Sae Flange Ball Valve Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.

Hydraulic Sae Flange Ball Valve Uses

Hydraulic SAE Flange Ball Valves play a crucial role in regulating hydraulic fluid flow in high-pressure systems. They are extensively utilized in oil & gas, marine, power generation, heavy machinery, and industrial automation, facilitating efficient and leak-free operations. Hydraulic SAE Flange Ball Valves are widely used in hydraulic power units, pumps, actuators, and mobile hydraulic systems, providing precise fluid regulation. Their corrosion-resistant, high-pressure resistance makes them suitable for extreme environments, minimizing downtime and improving system efficiency and safety
