Curtis Tube Fittings, located in Manila, Philippines, has built a solid reputation as a reliable manufacturer and supplier of top-notch L Port Type Ball Valves. Known for their precision engineering, durability, and leak-proof performance, these valves are crafted to ensure dependable flow control and directional flow switching in demanding industrial and process environments. Curtis takes pride in making sure that every L Port Ball Valve adheres to international standards, providing mechanical strength, operational reliability, and long-lasting performance. Catering to the oil and gas, chemical processing, marine, and industrial sectors, Curtis offers robust solutions that promise efficiency, safety, and consistent performance even in tough operating conditions.

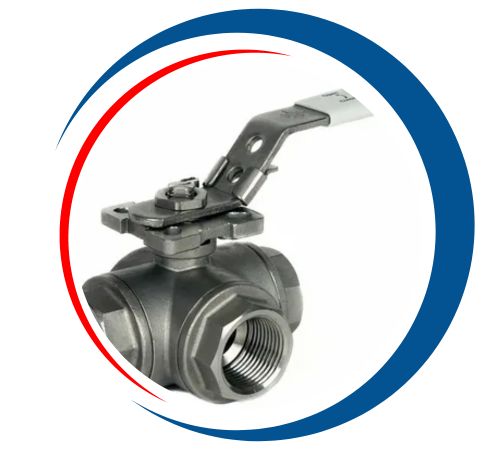

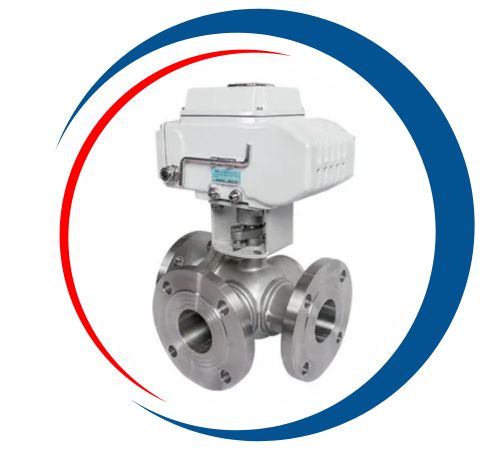

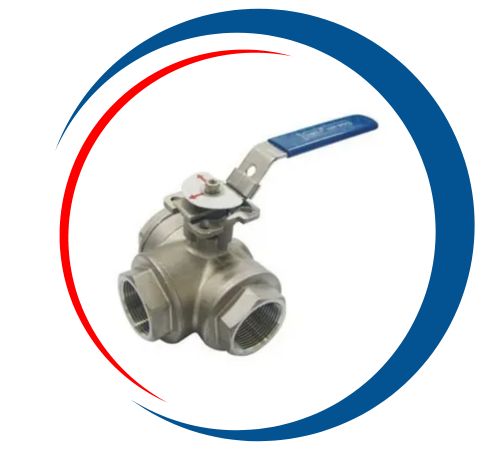

L Port Type Ball Valve Supplier in Manila, SAE Flanged End Ball Valve Price List in Cebu City, 3 way L-port Floating Ball Valve Manufacturer in Davao City, ASTM A193 GR.B8M Ball Valve in Baguio, ASTM A194 GR.8M Ball Valve Exporter in Cebu City, ASTM A182 SS316 Ball Valve Manufacturer in Puerto Princesa, ASTM A182 SS316 Ball Valve In Manila, Philippines.

L Port Type Ball Valve Specification
Top L Port Type Ball Valve Manufacturing Company in Manila
Material Code for L Port Type Ball Valve
Types of L Port Type Ball Valve
Material Code for L Port Type Ball Valve
L Port Type Ball Valve Supplier in Manila, Philippines
L Port Type Ball Valve Uses
Visit Our Other Products

Constructed from high-quality stainless steel or alloy materials, L Port Type Ball Valves boast excellent tensile strength, toughness, and resistance to corrosion. Their unique L-shaped port design allows for flexible flow configurations, making it easy to divert or shut off fluids while ensuring a leak-tight operation. These valves are built to endure high-pressure, high-temperature, and corrosive environments, guaranteeing precise and durable flow control in critical applications.

L Port Type Ball Valve Specification

TYPE :	3 way L-port Floating Ball Valve
Configuration :	L-port, Divertor Type, 2 seat Construction
PORT :	Full Bore
SIZE :	15 mm to 200mm NB
Pressure Rating :	ASME#150PN 20 ASME#300PN 50
Temperature Range	35 Deg C to 280 Deg C (Soft Seated)
Body Materials	Stainless Steel / Carbon Steel / Alloys
Design Standard	API 6D rev 23; ISO 17292 rev 2004
End Flanges	ASME B16.5 2013
Face to Face Dimension	ASME B16.10 Rev 2009
Fire safe design	API-607 Rev 2010
Testing	API 598 Rev 2009
Sour Service	NACE MOR 0175 Rev 2009
Documents	BS/EN 10204-3.1 REV 2004

L Port Type Ball Valve Supplier in Manila, SAE Flanged End Ball Valve Price List in Cebu City, 3 way L-port Floating Ball Valve Manufacturer in Davao City, ASTM A193 GR.B8M Ball Valve in Baguio, ASTM A194 GR.8M Ball Valve Exporter in Cebu City, ASTM A182 SS316 Ball Valve Manufacturer in Puerto Princesa, ASTM A182 SS316 Ball Valve In Manila, Philippines.

Top L Port Type Ball Valve Manufacturing Company in Manila

Venton Tube Fittings is the premier supplier, manufacturer and exporter of (L Port Type Ball Valve ) in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.

Material Code for L Port Type Ball Valve

SR.NO.	PART NAME	STAINLESS STEEL	CARBON STEEL	QTY
1	BODY	ASTM A351 CF8M	ASTM A216 WCB	1
2	END CONN.	ASTM A351 CF8M	ASTM A216 WCB	1
3	BALL	ASTM A182 SS316	ASTM A182 SS316	1
4	STEM	ASTM A182 SS316	ASTM A182 SS316	1
5	SEAT	PTFE	PTFE	2
6	STEM SEAL	GRAPHITE	GRAPHITE	2
7	GLAND	SS316	MS	1
8	GLAND BEARING	DELRIN	DELRIN	1
9	SPACER	SS316	SS316	1
10	STEM THRUST WASHER	GFT	GFT	1
11	BODY SEAL	GRAPHITE	GRAPHITE	1
12	STEM O-RING	VITON	VITON	1
13	END CONN. O-RING	VITON	VITON	1
14	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	6
15	NUT	ASTM A194 GR.8M	ASTM A194 GR.2H	6
16	LEVER	SS410	SS410	1
17	STOPER	MS	MS	1

Types of L Port Type Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Material Code for L Port Type Ball Valve

Nominal Diameter (mm)	Nominal Diameter (inch)	Kv (m3/h)	Cv (gal/min)
15	1/2″	19,4	22,6
20	3/4″	45,6	53,0
25	1″	71,5	83,1
32	1 1/4″	105	122,1
40	1 1/2″	170	197,7
50	2″	275	319,8
65	2 1/2″	507	589,5
80	3″	905	1052,3
100	4″	1414	1644,2
125	5″	2362	2746,5
150	6″	3694	4295,3

L Port Type Ball Valve Supplier in Manila, Philippines

L Port Type Ball Valves find extensive use in chemical and petrochemical plants, oil and gas facilities, marine systems, and industrial process pipelines, where they control, divert, or isolate the flow of fluids and gases. They are particularly suited for instrumentation lines, process control systems, and piping networks that require flexible flow configurations, leak-tight performance, and mechanical reliability. With their exceptional corrosion resistance, mechanical strength, and durability, these valves ensure safe, efficient, and long-lasting operation in harsh industrial settings.

L Port Type Ball Valve Uses

As for the Uses of the L Port Type Ball Valve, it finds its place in various industries, including chemical processing, water treatment, HVAC, and oil and gas. It’s designed for applications that require multi-directional flow control, making it ideal for diverter valves and mixing systems. This valve excels at regulating the flow of fluids and gases in intricate piping systems. With its sturdy construction and ability to endure high pressure and temperature, it plays a crucial role in maintaining the efficient operation of numerous industrial processes.
