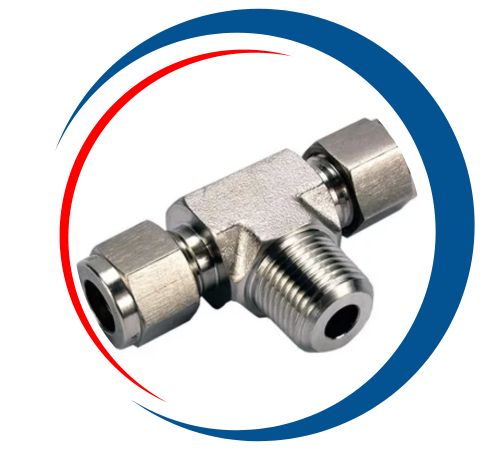

Curtis Tube Fittings, established in Manila, Philippines, is a reputable producer and supplier of high-quality tube fittings and valves, providing precision-engineered products to industries across the globe. Their emphasis on reliability, performance, and durability makes them a prominent name in the industry. One of their most popular products is the Male Branch Tee, which is intended to facilitate branching of flow in various directions. Constructed from the finest materials, this fitting delivers secure, leak-resistant connections and is best for use in situations that demand reliable fluid and gas distribution in sophisticated systems.
The Male Branch Tee is usually constructed from materials such as stainless steel, carbon steel, or brass, depending on the requirements of the application. Fittings like these are engineered for high strength to provide resistance against pressure and wear. The mechanical properties consist of a tensile strength of between 500 MPa and 800 MPa and a yield strength of approximately 250 MPa, depending on the material. With high corrosion resistance and durability, they function well in temperatures from -200°C to 500°C, retaining their structural integrity in different environments.
| Mcneil part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | NPT FEMALE PIPE SIZE P | LX | ODT-ØT(INCHES) | Ø E | BODY HEX F | C | NUT HEX W | D | L1 |
| 2-MBTD-2N | -200 – 3 – 2TTM | 2MBT2N | 1/8 | 0.70 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.86 |
| 2-MBTD-4N | -200 – 3 – 4TTM | 2MBT4N | 1/4 | 0.92 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.94 |
| 3-MBTD-2N | -300 – 3 – 2TTM | 3MBT2N | 1/8 | 0.70 | 3/16 | 0.12 | 9/16 | 0.63 | 7/16 | 0.54 | 1.92 |
| 4-MBTD-2N | -400 – 3 – 2TTM | 4MBT2N | 1/8 | 0.74 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 4-MBTD-4N | -400 – 3 – 4TTM | 4MBT4N | 1/4 | 0.92 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 5-MBTD-2N | -500 – 3 – 2TTM | 5MBT2N | 1/8 | 0.82 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 5-MBTD-4N | -500 – 3 – 4TTM | 5MBT4N | 1/4 | 1.01 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 6-MBTD-4N | -600 – 3 – 4TTM | 6MBT4N | 1/4 | 1.00 | 3/8 | 0.28 | 13/16 | 0.86 | 11/16 | 0.66 | 2.40 |
| 6-MBTD-6N | -600 – 3 – 6TTM | 6MBT6N | 3/8 | 1.11 | 3/8 | 0.28 | 13/16 | 0.76 | 11/16 | 0.66 | 2.62 |
| 8-MBTD-6N | -810 – 3 – 8TTM | 8MBT6N | 3/8 | 1.11 | 1/2 | 0.38 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 8-MBTD-8N | -810 – 3 – 8TTM | 8MBT8N | 1/2 | 1.30 | 1/2 | 0.41 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 10-MBTD-8N | -1010 – 3 – 8TTM | 10MBT8N | 1/2 | 1.41 | 5/8 | 0.47 | 1 | 0.86 | 1 | 0.96 | 3.06 |
| 12-MBTD-12N | -1210 – 3 – 12TTM | 12MBT12N | 3/4 | 1.45 | 3/4 | 0.62 | 1-1/16 | 0.86 | 1-1/8 | 0.96 | 3.14 |
| 14-MBTD-12N | -1410 – 3 – 12TTM | 14MBT12N | 3/4 | 1.50 | 7/8 | 0.62 | 1-3/8 | 0.86 | 1-1/4- | 1.02 | 3.52 |
| 16-MBTD-12N | -1610 – 3 -12TTM | 16MBT12N | 3/4 | 1.66 | 1 | 0.62 | 1-3/8 | 1.04 | 1-1/2 | 1.23 | 3.88 |
| 16-MBTD-16N | -1610 – 3 -16TTM | 16MBT16N | 1 | 1.84 | 1 | 0.88 | 1-3/8 | 1.04- | 1-1/2 | 1.23 | 3.88 |

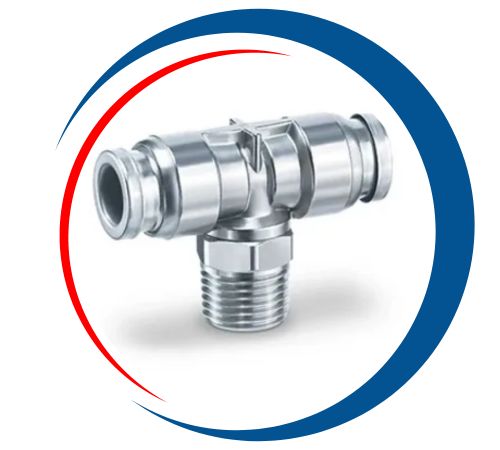

Venton Tube Fittings is the premier supplier, manufacturer and exporter of (Male Branch Tees) in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.

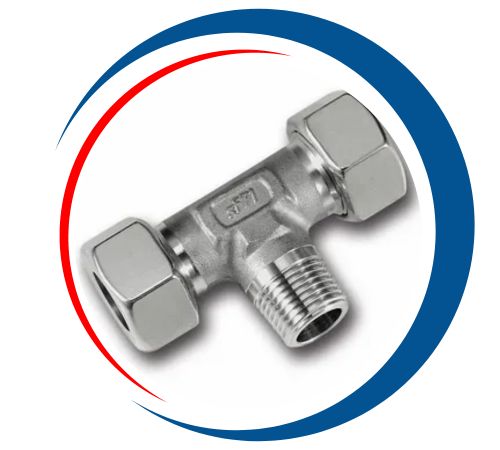

Venton Tube Fittings is a trusted and exporter of top-quality(Male Branch Tees) Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.
Contact us to get a quick quote for your requirement.
Male Branch Tees are extensively used in oil and gas, chemical processing, and HVAC applications. They are critical within pipeline systems wherein the distribution of fluids or gases to various directions or branches is needed. Such fittings ensure tight, reliable connections and are widely utilized in systems involving high-pressure systems or hostile environments. With their versatility, they are the best for use in industrial or commercial applications with a guaranteed steady and efficient transfer of materials in complex piping systems.
Please feel free to contact us if you need any further information or for enquiry.
