Home > Hydraulic Equal Cross

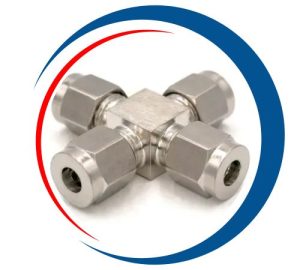

Curtis Tube Fittings, based in Manila, Philippines, is a reliable manufacturer and supplier of premium tube fittings, valves, and hydraulic components. With their precision engineering and dependable solutions, Curtis caters to industries worldwide. One of their most popular products is the Hydraulic Equal Cross, which is used to join four pipes or tubes of equal diameter in a hydraulic system. This equal is used for uniform distribution of fluid or gas, which promotes smooth flow in multi-directional systems, and provides strength and leak-free operation in demanding use.

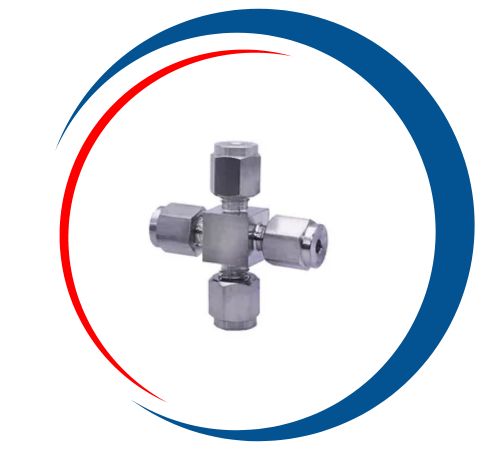

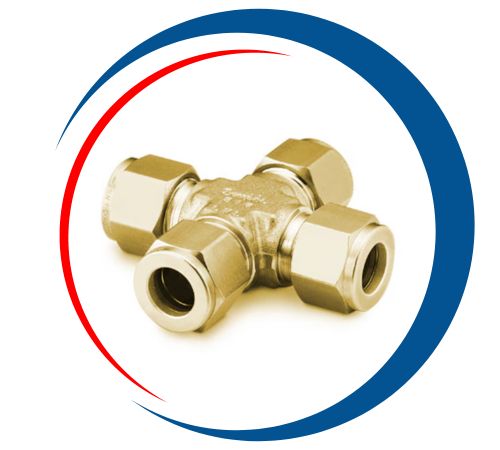

The Hydraulic Equal Cross is generally fabricated using materials like stainless steel, carbon steel, or brass, based on the application. It consists of an equal connection of four tubes, ensuring uniform flow of fluid in all directions. The mechanical properties are a tensile strength of up to 800 MPa and yield strength of approximately 350 MPa. With good corrosion resistance and a density of around 7.85 g/cm³ for steel varieties, these fittings support temperature ranges from -50°C to 250°C, ensuring stability in extreme conditions.

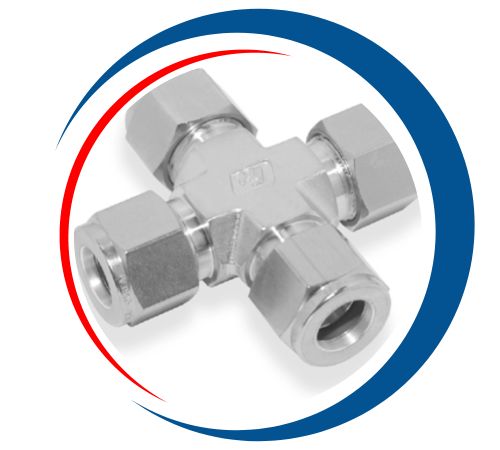

| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE |
| BODY TYPE | FORGED, BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| EQUIVALENT BRANDS | PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS |
| APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
Venton Tube Fittings is the premier supplier, manufacturer and exporter of (Hydraulic Equal Cross) in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.
| Thread | CH | L1 | L2 | T1 | Pressure PN | Weight kg 100pcs | Series |
|---|---|---|---|---|---|---|---|
| Thread F1 | mm | mm | mm | mm | bar | ||
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 7,8 | L |
| 12×1,5 | 12 | 12 | 27 | 6 | 315 | 7,8 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 11,0 | L |
| 14×1,5 | 12 | 14 | 29 | 8 | 315 | 11,0 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 15,7 | L |
| 16×1,5 | 14 | 15 | 30 | 10 | 315 | 15,7 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 19,5 | L |
| 18×1,5 | 17 | 17 | 32 | 12 | 315 | 19,5 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 31,5 | L |
| 22×1,5 | 19 | 21 | 36 | 15 | 315 | 31,5 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 48,7 | L |
| 26×1,5 | 24 | 23,5 | 40 | 18 | 315 | 48,7 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 73,0 | L |
| 30×2 | 27 | 27,5 | 44 | 22 | 160 | 73,0 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 101,5 | L |
| 36×2 | 36 | 30,5 | 47 | 28 | 160 | 101,5 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 123,5 | L |
| 45×2 | 41 | 34,5 | 56 | 35 | 160 | 123,5 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 176,5 | L |
| 52×2 | 50 | 40 | 63 | 42 | 160 | 176,5 | L |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 13,0 | S |
| 14×1,5 | 12 | 16 | 31 | 6 | 630 | 13,0 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 17,0 | S |
| 16×1,5 | 14 | 17 | 32 | 8 | 630 | 17,0 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 24,2 | S |
| 18×1,5 | 17 | 17,5 | 34 | 10 | 630 | 24,2 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 30,1 | S |
| 20×1,5 | 17 | 21,5 | 38 | 12 | 630 | 30,1 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 39,0 | S |
| 22×1,5 | 19 | 22 | 40 | 14 | 630 | 39,0 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 49,0 | S |
| 24×1,5 | 24 | 24,5 | 43 | 16 | 400 | 49,0 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 76,0 | S |
| 30×2 | 27 | 26,5 | 48 | 20 | 400 | 76,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 138,0 | S |
| 36×2 | 36 | 30 | 54 | 25 | 400 | 138,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 172,0 | S |
| 42×2 | 41 | 35,5 | 62 | 30 | 400 | 172,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 269,0 | S |
| 52×2 | 50 | 41 | 72 | 38 | 315 | 269,0 | S |
Contact us to get a quick quote for your requirement.
Venton Tube Fittings is a trusted and exporter of top-quality(Hydraulic Equal Cross) Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.
Hydraulic Equal Crosses are used across various industries such as oil and gas, manufacturing, and automotive. They are vital for forming multi-directional connections in hydraulic and pneumatic systems. The fittings are readily employed in machinery, fluid power systems, and industrial plant equipment where equal fluid or gas distribution is required. Their durable structure provides consistent performance under pressure and harsh conditions, making them suited for applications demanding reliable, leak-proof connections in intricate piping systems.
Please feel free to contact us if you need any further information or for enquiry.
