Hydraulic Equal Tee

Home > Hydraulic Equal Tee

Curtis Tube Fittings is a prominent producer and distributor of top-grade hydraulic fittings in Manila, Philippines. We are experts in Hydraulic Equal Tees, which allow for an even three-way connection in hydraulic systems. Our fittings provide leak-free performance, high-pressure resistance, and durability and are ideal for use in several industrial applications. Made with precision engineering and durable materials, our hydraulic equal tees are extensively utilized in construction, oil & gas, heavy machinery, and manufacturing sectors, providing efficient and reliable fluid distribution.

Hydraulic Equal Tee Supplier in Manila, CS Hydraulic Equal Tee Manufacturer in Cebu City, Philippines, DIN 2353 Hydraulic Tee Exporter in Baguio, Hydraulic Equal Tee Assembled & Un Assembled Supplier in Manila, CS Hydraulic Equal Tee Exporter in Davao City, DIN 2353 Hydraulic Tee Manufacturer in Cebu City, Philippines, Hydraulic Equal Tee Manufacturer in Baguio

Table of Contents

  1. Hydraulic Equal Tee Specifications
  2. Top Hydraulic Equal Tee Manufacturing Company in Manila
  3. Types of Hydraulic Equal Tee
  4. Dimensions of Hydraulic Equal Tee
  5. Largest Manufacturer and Supplier of Hydraulic Equal Tee in Manila, Philippines
  6. Hydraulic Equal Tee Uses
  7. Visit Our Other Products

Hydraulic Equal Tees are usually constructed from stainless steel, carbon steel, brass, or alloy steel, which offer superior corrosion resistance, mechanical strength, and durability. These fittings have high tensile strength (80-120 ksi), yield strength (40-80 ksi), and excellent impact resistance, making them suitable for high-pressure hydraulic systems. Their physical properties are temperature resistance between -50°C and 500°C, excellent fatigue resistance, and strong sealing properties. These properties guarantee long-term performance, even under harsh hydraulic system conditions.

Hydraulic Equal Tee Specifications

STANDARD  DIN 2353/ ISO 8434-1
MATERIAL MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L,  SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY ,  904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
SERIES  LL- LOW PRESSURE , L- MEDIUM PRESSURE,  S- HIGH PRESSURE
WORKING PRESSURE  (LOW) LL SERIES – 100 BAR
(MEDIUM)L SERIES – 100 BAR TO 500 BAR
(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE  LL SERIES – 4LL TO 12LL
L SERIES – 6L TO 42L
S SERIES – 6S TO 38S
CONNECTIONS TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE
WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL
BODY TYPE FORGED, BAR STOCK
SURFACE CARBON STEEL -TRIVALENT ZINC PLATED ,  YELLOW PLATTING , BLACK PHOSPHATED,
STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE  STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C)
EQUIVALENT BRANDS PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS
APPLICATIONS & INDUSTRIES CONSTRUCTION  EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT,    INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT

Top Hydraulic Equal Tee Manufacturing Company in Manila

Venton Tube Fittings is the premier supplier, manufacturer and exporter of Hydraulic Equal Tee
in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.

Types of Hydraulic Equal Tee

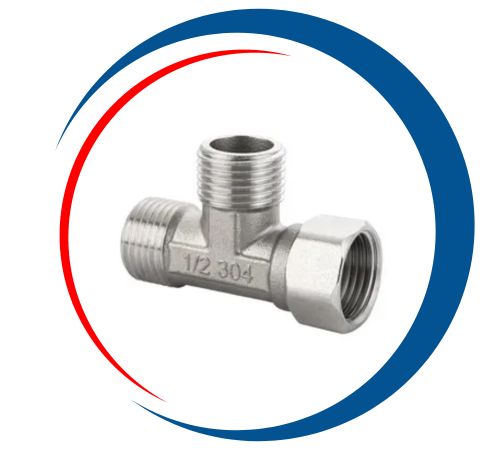

Hydraulic Equal Tee

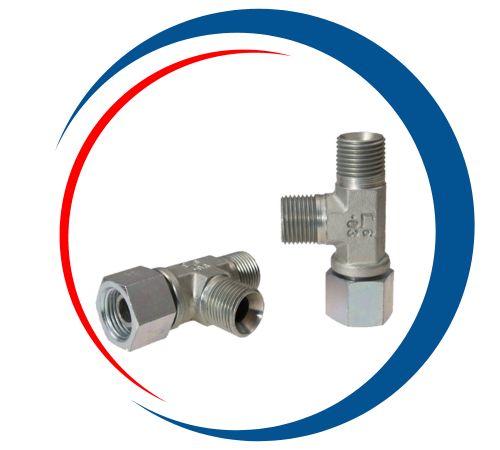

Hydraulic Equal Tee Assembled & Un Assembled

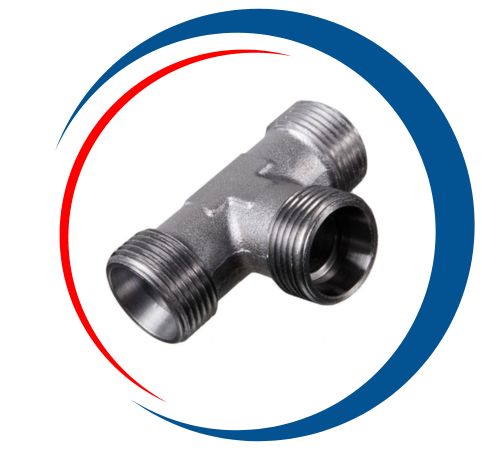

CS Hydraulic Equal Tee

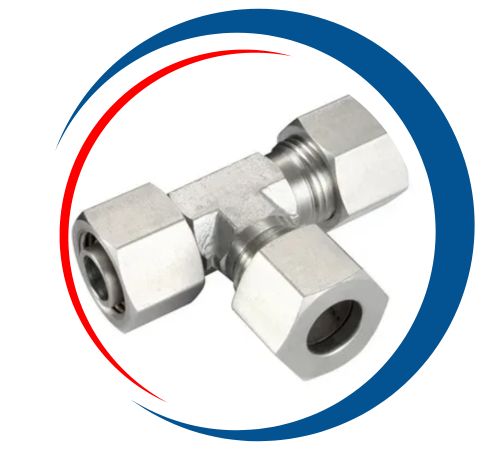

SS Hydraulic Equal Tee

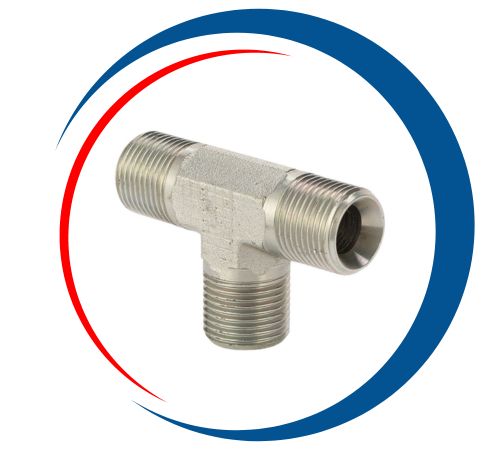

DIN 2353 Hydraulic Tee

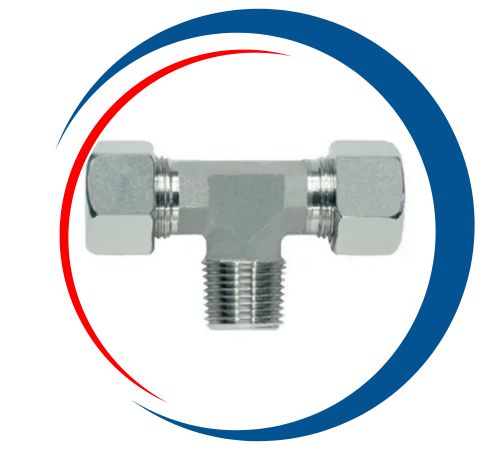

Hydraulic Reducing Tee

Dimensions of Hydraulic Equal Tee

ThreadCHL1L2TPressure PNWeight kg 100pcsSeries
Thread F1mmmmmmmmbar
12×1,512122763156,3L
12×1,512122763156,3L
14×1,512142983158,5L
14×1,512142983158,5L
16×1,51415301031511,5L
16×1,51415301031511,5L
18×1,51717321231515,0L
18×1,51717321231515,0L
22×1,51921361531524,5L
22×1,51921361531524,5L
26×1,52423,5401831535,8L
26×1,52423,5401831535,8L
30×22727,5442216047,9L
30×22727,5442216047,9L
36×23630,5472816074,5L
36×23630,5472816074,5L
45×24134,55635160100,0L
45×24134,55635160100,0L
52×250406342160150,0L
52×250406342160150,0L
14×1,5121631663011,0S
14×1,5121631663011,0S
16×1,5141732863014,2S
16×1,5141732863014,2S
18×1,51717,5341063019,1S
18×1,51717,5341063019,1S
20×1,51721,5381263024,3S
20×1,51721,5381263024,3S
22×1,51922401463030,2S
22×1,51922401463030,2S
24×1,52424,5431640039,8S
24×1,52424,5431640039,8S
30×22726,5482040060,0S
30×22726,5482040060,0S
36×236305425400112,0S
36×236305425400112,0S
42×24135,56230400146,0S
42×24135,56230400146,0S
52×250417238315206,0S
52×250417238315206,0S

Hydraulic Equal Tee Assembled & Un Assembled Manufacturer in Cebu City, SS Hydraulic Equal Tee Exporter in Manila, Hydraulic Reducing Tee Exporter in Baguio, DIN 2353 Hydraulic Tee Supplier in Davao City, Hydraulic Equal Tee Assembled & Un Assembled Exporter in Puerto Princesa, Hydraulic Reducing Tee Supplier in Puerto Princesa, Hydraulic Equal Tee Stockist in Cebu City, Philippines

Contact us to get a quick quote for your requirement.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Largest Manufacturer and Supplier of Hydraulic Equal Tee in Manila, Philippines

Venton Tube Fittings is a trusted and exporter of top-quality Hydraulic Equal Tee Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.

Hydraulic Equal Tee Uses

Hydraulic Equal Tees find extensive application in hydraulic and pneumatic systems for producing a three-way balanced fluid flow. Hydraulic Equal Tees are critical to use in the construction, oil & gas, marine, power generation, and manufacturing sectors in ensuring smooth hydraulic distribution. They find extensive usage in hydraulic power units, brake systems, heavy machines, and industrial automation. Due to corrosion-resistant and high-pressure resistance properties, they suit adverse environments by delivering leak-free, efficient, and long-term connections in hydraulic systems.

Hydraulic Threaded Equal Tees Supplier in Manila, Hydraulic Welded Equal Tees Exporter in Baguio, Hydraulic Socket Weld Equal Tees Supplier in Davao City, Hydraulic Equal Tee Assembled & Un Assembled Stockist in Puerto Princesa, SS Hydraulic Equal Tee Manufacturer in Baguio, Hydraulic Socket Weld Equal Tees Exporter in Manila, Philippines
