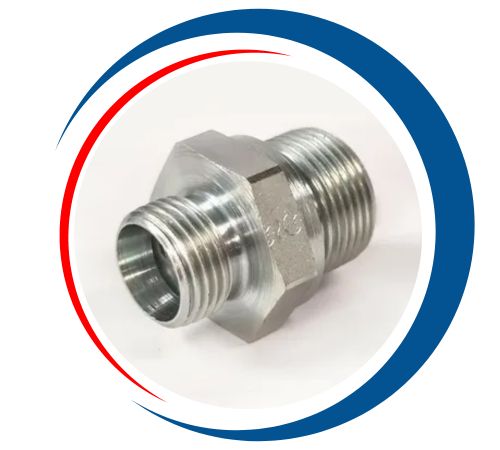

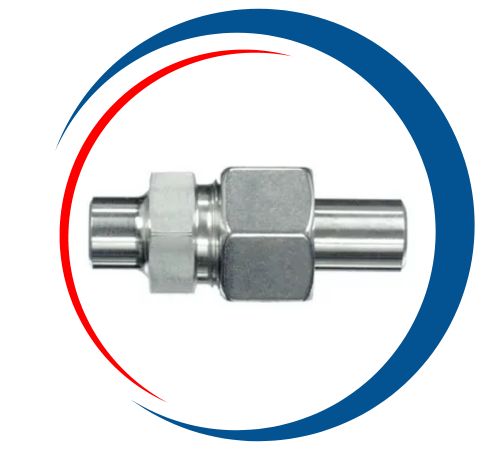

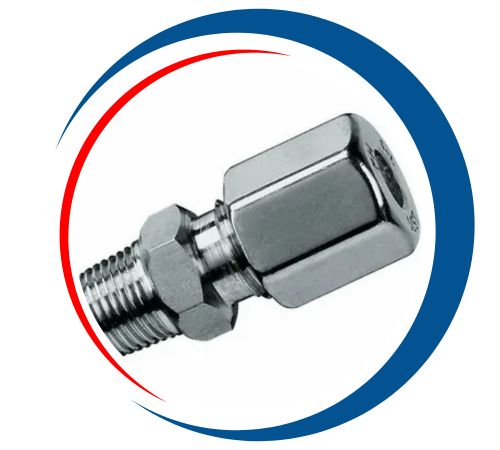

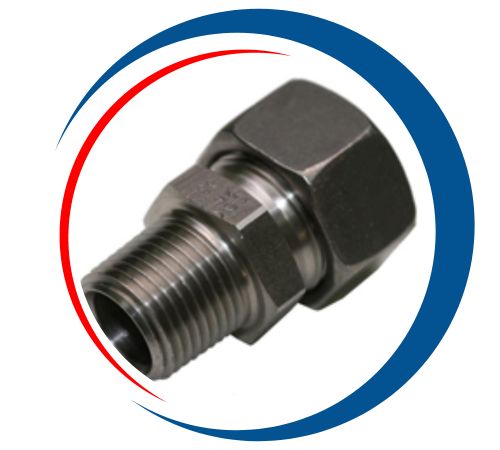

Curtis Tube Fittings in Manila, Philippines, is an experienced producer and supplier of high-performance tube fittings and valves. Famous for precision engineering and reliability, Curtis caters to many industries with reliable fluid control solutions. One of its important products, the Pressure Gauge Connector, is made to offer leak-proof and secure connections between pressure gauges and piping systems. It provides precise pressure measurement by providing a stable, consistent interface, making it critical to the measurement of pressure levels in different systems.
Composition, Mechanical, and Physical Properties: Pressure Gauge Connectors are generally composed of materials such as stainless steel, brass, or carbon steel, providing high strength, corrosion resistance, and durability. The mechanical properties comprise high tensile strength and fatigue resistance, providing the connector with the ability to withstand performance under pressure. Physical characteristics of the connectors are high-temperature and chemical resistance. They are easy to install and offer a leak-proof, tight seal for consistent pressure readings in critical applications. Pressure Gauge Connectors are designed to efficiently operate in high-pressure environments.
| STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304, SS 304L, SS 316, SS 316L, SS 316TI ( 1.4571), BRASS, COPPER, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, 904L, 6MO, TITANIUM, ALUMINUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE, L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| BODY TYPE | BAR STOCK |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED, YELLOW PLATTING, BLACK PHOSPHATE, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH |
Venton Tube Fittings is the premier supplier, manufacturer and exporter of (Pressure Gauge Connector ) in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.
| CONNECTORS FOR PRESSURE GAUGE DN63 | ||||
|---|---|---|---|---|
| Thread type | Brass | Max pressure | AISI316 | Max pressure |
| G1/8B | 684 | 630 bar | 692 | 1000 bar |
| G1/4B G1/4B DIN | 675 5635 | 800 bar 800 bar | 688 3828 | 1250 bar 1250 bar |
| G3/8B G3/8B w/spigot | 680 6379 | 1000 bar 1000 bar | 141 | 1600 bar |
| G1/2B | 690 | 1250 bar | 693 | 1600 bar |
| 1/4 BSP T | 3399 | 1250 bar | ||
| 1/4 flare (7/16-UNF20(SAE)) 3/8 flare (5/8-18 UNF(SAE)) | 687 6931 | 800 bar 1000 bar | 3219 | 1250 bar |
| 1/8 NPT 1/4 NPT 1/2 NPT | 4047 681 | 630 bar 800 bar | 5158 4050 4051 | 1000 bar 1250 bar 1600 bar |
| Throttle screw – Standard damping – Powerfull damping | . 152 2129 | . 1427 | ||
| M10x0,75 | 1804 | |||
| M12x1,5 (for Ø6mm tube, compr. gland) | 3872 | |||
| Carbon steel | ||||
| Union – M12x1,5 Olive – Ø6 mm | 1387 1388 | |||
| Gaket – PTFE | . 0405-004 | |||
| Extra gasket G1/4 G3/8 G1/2 | Fiber H143 H144 H145 | Copper 8760 . 8637 |
Contact us to get a quick quote for your requirement.
Venton Tube Fittings is a trusted and exporter of top-quality(Pressure Gauge Connector ) Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.
Applications of Pressure Gauge Connector: Pressure Gauge Connectors find extensive applications in chemical processing, oil and gas, water treatment, and HVAC systems, where precise pressure measurement is critical. These connectors are equipped to support the connection of pressure gauges to equipment or pipelines for accurate measurement of fluid or gas pressure. These connectors are instrumental in ensuring system safety, performance optimization, and pressure-related damage prevention. Pressure Gauge Connectors find their application in systems that demand accurate control and regulation of pressure levels in various industrial processes.
Please feel free to contact us if you need any further information or for enquiry.
