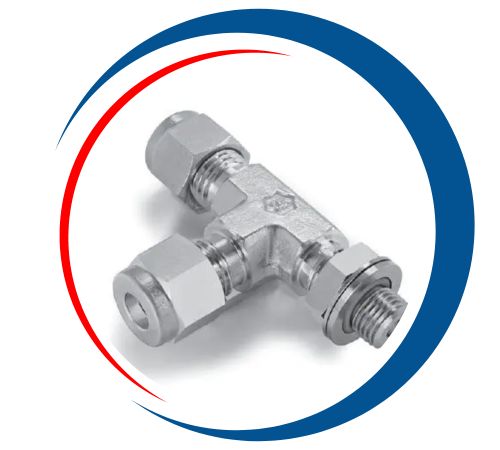

Curtis Tube Fittings is a reputable manufacturer and supplier located in Manila, Philippines, known for its top-notch Special Grade Hydraulic Fittings. These fittings are crafted for high-performance hydraulic systems, boasting remarkable strength, durability, and resistance to wear and corrosion. This ensures they operate reliably even under extreme pressure and temperature conditions. Curtis Tube Fittings places a strong emphasis on precision engineering, rigorous quality control, and timely delivery to meet international standards. Their Special Grade Hydraulic Fittings are perfect for industries like oil and gas, petrochemical, power generation, and heavy machinery. They guarantee leak-free connections, a long service life, and efficient fluid transfer for critical hydraulic applications.
Typically, Special Grade Hydraulic Fittings are made from high-strength stainless steel, carbon steel, or alloy materials, providing excellent mechanical properties and corrosion resistance. They can handle tensile strength up to 600 MPa, exhibit high yield strength, and possess superior toughness, making them ideal for demanding high-pressure hydraulic systems. These fittings are designed with precision, durability, and reliability in mind, offering excellent resistance to wear, erosion, and chemical attack. Their sturdy construction ensures consistent performance, leak-free operation, and long-lasting durability in crucial hydraulic and fluid transfer applications across various industrial settings.
| BRAND | Curtis Tube Fittings |
| DESIGN STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE |
| WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL | |
| BODY TYPE | FORGED, BAR STOCK |
| ACCESSORIES | O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT |
| O-RING & SEALS | NBR ( -35*C TO 100* C ) VITON (-25*C TO 200* C) , PTFE – (-60*C TO 240*) |
| SURFACE | EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH |
| C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|
| 0.02 Max | 2.0 Max | 1.0 Max | 0.045 Max | 0.035 Max | 19.0 Min 23.0 Max | 4.0 Min 5.0 Max | 23.0 Min 28.0 Max | 1.0 Min 2.0 Max |
|
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness
Rockwell B (HR B) |
Hardness
Brinell (HB) |
|---|---|---|---|---|
|
490 |
220 |
36 |
70-90 typical |
150 |
Venton Tube Fittings is the premier supplier, manufacturer and exporter of Special Grade Hydraulic Fittings in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.
|
Grade |
904L |
|
|
Density
(kg/m3) |
7900 |
|
|
Elastic Modulus
(GPa) |
190 |
|
|
Mean Co-eff of Thermal Expansion (µm/m/°C) |
0-100°C |
15 |
|
0-315°C |
||
|
0-538°C |
||
|
Thermal Conductivity
(W/m.K) |
At 20°C |
11.5 |
|
At 500°C |
||
|
Specific Heat 0-100°C
(J/kg.K) |
500 |
|
|
Elec Resistivity
(nΩ.m) |
952 |
|
Venton Tube Fittings is a trusted and exporter of top-quality Special Grade Hydraulic Fittings
Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.
Contact us to get a quick quote for your requirement.
Special Grade Hydraulic Fittings are extensively utilized in industries that require strong, high-performance, and dependable fluid connections. They’re commonly found in oil and gas pipelines, petrochemical and chemical plants, power generation systems, and heavy machinery. Their exceptional strength and corrosion resistance make them perfect for high-pressure hydraulic lines, fluid transfer systems, and instrumentation controls. Additionally, these fittings are used in construction, mining, marine, and manufacturing sectors, where safety, efficiency, and longevity are paramount. Special Grade Hydraulic Fittings ensure reliable performance in even the most demanding environments.
Please feel free to contact us if you need any further information or for enquiry.
