Home > Hydraulic Stand Pipe Reducer

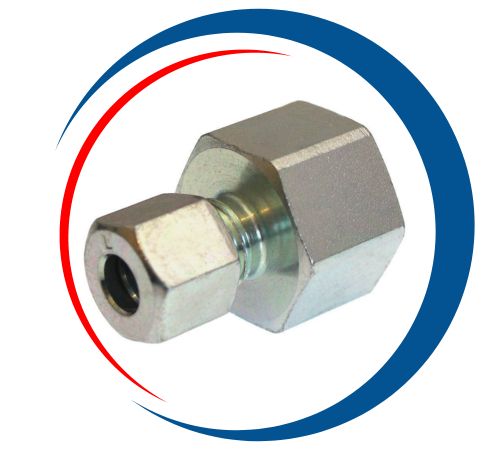

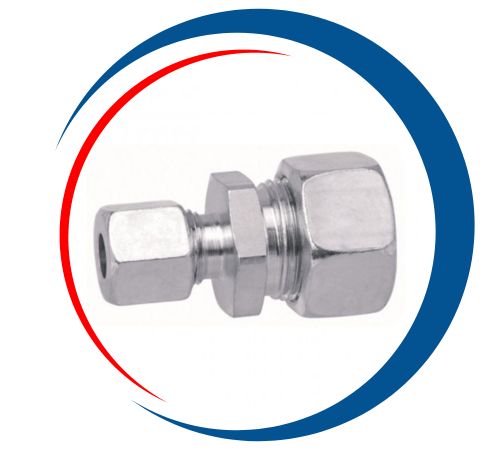

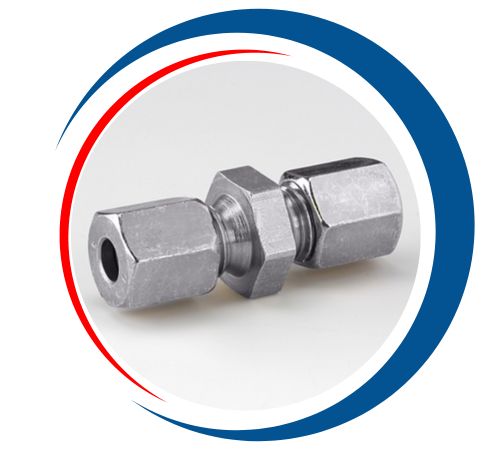

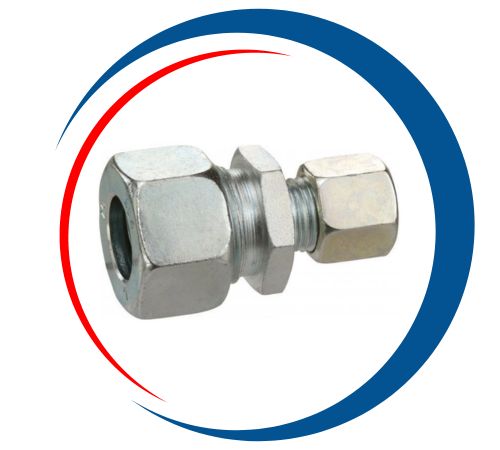

Curtis Tube Fittings is a reliable manufacturer and supplier of premium hydraulic fittings in Manila, Philippines. We deal in Hydraulic Stand Pipe Reducers, which are perfect for smooth transitions between the sizes of pipes in hydraulic systems. The reducers ensure leak-free connections, strength against high pressures, and long life, providing effective fluid transfer. Our stand pipe reducers are manufactured with precision and high-strength materials. These are extensively used in the construction, agricultural, automotive, and heavy machinery sectors, providing effective performance in demanding hydraulic applications.
Hydraulic Stand Pipe Reducers are normally constructed from stainless steel, carbon steel, or brass, possessing good corrosion resistance, durability, and mechanical strength. The reducers possess high tensile strength (80-100 ksi), yield strength (40-70 ksi), and good impact resistance, thus being best suited for applications under high pressure. Their physical properties are resistance to temperature of -50°C to 400°C, high fatigue resistance, and a good sealing ability. Such properties facilitate secure and durable hydraulic connections in harsh operating environments.
Venton Tube Fittings is the premier supplier, manufacturer and exporter of Hydraulic Stand Pipe Reducer in Manila, Philippines. Our strategic manufacturing units placed in the Philippines allow us to supply high-quality solutions customized to your needs. We value Efficiency and Excellence. Ensuring that our products meet the highest industry standards. Maintaining a well-stocked inventory we are always ready to ship orders in time and reliably. Our dedication to customer satisfaction compels us to deliver strong and reliable solutions for a wide range of industrial uses.
| Material | Tube O.D. (D1) (mm) | Tube O.D. (D2) (mm) | H 1 (mm) | H 2 (mm) | L (mm) | l (mm) | T (mm) | PN (bar) |
| Carbon Steel | 8.00 | 6.00 | 17.00 | 14.00 | 38.00 | 23.50 | M14x1.5 | 315 |
| Carbon Steel | 10.00 | 6.00 | 19.00 | 14.00 | 38.00 | 23.50 | M16x1.5 | 315 |
| Carbon Steel | 10.00 | 8.00 | 19.00 | 17.00 | 38.00 | 23.50 | M16x1.5 | 315 |
| Carbon Steel | 12.00 | 6.00 | 22.00 | 14.00 | 38.00 | 23.50 | M18x1.5 | 315 |
| Carbon Steel | 12.00 | 8.00 | 22.00 | 17.00 | 38.00 | 23.50 | M18x1.5 | 315 |
| Carbon Steel | 12.00 | 10.00 | 22.00 | 19.00 | 39.00 | 24.50 | M18x1.5 | 315 |
| Carbon Steel | 15.00 | 6.00 | 27.00 | 14.00 | 38.00 | 23.50 | M22x1.5 | 315 |
| Carbon Steel | 15.00 | 8.00 | 27.00 | 17.00 | 38.00 | 23.50 | M22x1.5 | 315 |
| Carbon Steel | 15.00 | 10.00 | 27.00 | 19.00 | 39.00 | 24.50 | M22x1.5 | 315 |
| Carbon Steel | 15.00 | 12.00 | 27.00 | 22.00 | 39.00 | 24.50 | M22x1.5 | 315 |
| Carbon Steel | 18.00 | 6.00 | 32.00 | 14.00 | 39.00 | 24.50 | M26x1.5 | 315 |
| Carbon Steel | 18.00 | 8.00 | 32.00 | 17.00 | 39.00 | 24.50 | M26x1.5 | 315 |
| Carbon Steel | 18.00 | 10.00 | 32.00 | 19.00 | 40.00 | 25.50 | M26x1.5 | 315 |
| Carbon Steel | 18.00 | 12.00 | 32.00 | 22.00 | 40.00 | 25.50 | M26x1.5 | 315 |
| Carbon Steel | 18.00 | 15.00 | 32.00 | 27.00 | 42.00 | 26.50 | M26x1.5 | 315 |
| Carbon Steel | 22.00 | 6.00 | 36.00 | 14.00 | 40.00 | 25.50 | M30x2 | 160 |
| Carbon Steel | 22.00 | 8.00 | 36.00 | 17.00 | 40.00 | 25.50 | M30x2 | 160 |
| Carbon Steel | 22.00 | 10.00 | 36.00 | 19.00 | 41.00 | 26.55 | M30x2 | 160 |
| Carbon Steel | 22.00 | 12.00 | 36.00 | 22.00 | 41.00 | 26.50 | M30x2 | 160 |
| Carbon Steel | 22.00 | 15.00 | 36.00 | 27.00 | 43.00 | 27.50 | M30x2 | 160 |
| Carbon Steel | 22.00 | 18.00 | 36.00 | 32.00 | 43.00 | 27.00 | M30x2 | 160 |
| Carbon Steel | 28.00 | 6.00 | 41.00 | 14.00 | 41.00 | 26.50 | M36x2 | 160 |
| Carbon Steel | 28.00 | 8.00 | 41.00 | 17.00 | 41.00 | 26.50 | M36x2 | 160 |
| Carbon Steel | 28.00 | 10.00 | 41.00 | 19.00 | 42.00 | 27.50 | M36x2 | 160 |
| Carbon Steel | 28.00 | 12.00 | 41.00 | 22.00 | 42.00 | 27.50 | M36x2 | 160 |
| Carbon Steel | 28.00 | 15.00 | 41.00 | 27.00 | 44.00 | 28.50 | M36x2 | 160 |
| Carbon Steel | 28.00 | 18.00 | 41.00 | 32.00 | 44.00 | 28.00 | M36x2 | 160 |
| Carbon Steel | 28.00 | 22.00 | 41.00 | 36.00 | 46.00 | 30.00 | M36x2 | 160 |
| Carbon Steel | 35.00 | 6.00 | 50.00 | 14.00 | 46.00 | 31.50 | M45x2 | 160 |
| Carbon Steel | 35.00 | 8.00 | 50.00 | 17.00 | 46.00 | 31.50 | M45x2 | 160 |
Contact us to get a quick quote for your requirement.
Venton Tube Fittings is a trusted and exporter of top-quality Hydraulic Stand Pipe Reducer Philippines. Our products are used widely across diverse industries, proving our commitment to excellence and customer satisfaction. Our unique finishing processes set us apart in the metal istockist ndustry. We assure premier product quality and reliability. Our dedication to innovation and precision, enables us to provide to the evolving needs of our clients while maintaining the highest standards of service.
Hydraulic Stand Pipe Reducers play a critical role in hydraulic and pneumatic systems where various pipe sizes must be properly connected. They find extensive application in oil & gas, manufacturing, power generation, construction, and agricultural equipment to provide smooth fluid flow under differential pressure conditions. Hydraulic Stand Pipe Reducers increase efficiency in hydraulic power units, braking systems, and industrial automation by offering robust, leak-proof connections. Their corrosion-resistance and toughness make them perfect for extreme conditions, minimizing maintenance and downtime in mission-critical applications
Please feel free to contact us if you need any further information or for enquiry.
